ClickHouse

Use this guide to connect ClickHouse to Wren AI and review the permissions and settings required for stable query execution.

plan support

Included in all plans

IP Whitelist for Wren AI Cloud

Wren AI needs to access your ClickHouse database via the IP address of the outbound IP of Wren AI Cloud. Please add the IP address of the Wren AI service to the firewall of your ClickHouse database.

Scroll to the bottom of the data source connection page to find the IP address.

To add a ClickHouse connection, click on the ClickHouse option in Connect a data source section. connect

Required Permissions

Wren AI connects to ClickHouse as a regular database user and only issues read-only queries — SELECT against your tables/views and ClickHouse metadata tables. It will never INSERT, UPDATE, DELETE, or run DDL (CREATE, ALTER, DROP, TRUNCATE). Read-only grants are sufficient — and recommended — for a secure connection.

Do not connect as an administrator

Avoid using default, admin, or any broadly privileged account as the connecting account. They violate least-privilege principles and may expose more databases than you intended. Use a dedicated read-only user whenever possible.

1. Privileges checklist

The ClickHouse user account used by Wren AI needs the following on your target database:

Category	Privilege	Notes
Login	A valid ClickHouse user/password	Required to connect.
Business data	`SELECT` on the tables/views you want Wren AI to read	Grant this per database, for example `GRANT SELECT ON analytics.* TO wren_ai;`.
Metadata discovery	Read access to `system.tables` and `system.columns`	Wren AI uses these system tables to list tables, columns, comments, and raw ClickHouse types. In standard ClickHouse setups this is available to authenticated users. In hardened environments, grant these explicitly.

System tables used for table/column discovery:

System table	Purpose
`system.tables`	Discover tables/views and table comments
`system.columns`	Read column names, data types, and column comments

Missing data access typically surfaces as an ACCESS_DENIED error when connecting, selecting tables, or running queries.

The table picker excludes objects in system, INFORMATION_SCHEMA, information_schema, and pg_catalog by design. Objects in those databases will not appear in Wren AI even if the connecting user can query them directly.

2. Minimum account setup

You can connect Wren AI either as an existing read-only user or as a dedicated read-only user. Pick whichever fits your security posture — both work with the connector.

Option A — Create a dedicated read-only user (recommended)

For least-privilege setups, create a dedicated user and grant only SELECT on the databases you want Wren AI to read:

-- 1. Create the user.
CREATE USER wren_ai IDENTIFIED WITH sha256_password BY 'YourSecurePassword';

-- 2. Grant SELECT on each database to expose.
GRANT SELECT ON analytics.* TO wren_ai;
GRANT SELECT ON mart.*      TO wren_ai;

Option B — Use an existing read-only user

If you already have a read-only ClickHouse user, make sure it can read the target tables/views:

GRANT SELECT ON analytics.* TO existing_readonly_user;

Tables and views granted this way will appear in Wren AI's table picker. If you grant access to multiple databases, Wren AI can list and model tables across those databases.

3. Verify the account

After setup, log in as the ClickHouse user you plan to configure in Wren AI and run the scripts below. Each one mirrors a check Wren AI performs at connection time — if all checks succeed, the account is ready.

-- Confirms the account can connect and read the server version.
SELECT version();

If login fails with AUTHENTICATION_FAILED or UNKNOWN_USER, verify the username and password. If the request times out, check your host, port, SSL setting, and IP allow-list.

b. Metadata discovery access

-- Confirms Wren AI can read the system tables used for table/column discovery.
SELECT 'system.tables' AS table_name, COUNT(*) AS row_count
FROM system.tables
WHERE database NOT IN ('system', 'INFORMATION_SCHEMA', 'information_schema', 'pg_catalog')
UNION ALL
SELECT 'system.columns', COUNT(*)
FROM system.columns
WHERE database NOT IN ('system', 'INFORMATION_SCHEMA', 'information_schema', 'pg_catalog');

If this fails with ACCESS_DENIED, grant SELECT ON system.tables and SELECT ON system.columns to your user. If this fails with UNKNOWN_IDENTIFIER, your ClickHouse version or compatible service may not expose one of the required system table columns. Upgrade to a recent ClickHouse version or contact us.

c. Preview the tables Wren AI will discover

This is the metadata query Wren AI uses to populate the table picker. Each row corresponds to one column in a table or view visible to the connecting user:

SELECT
    c.database AS table_schema,
    c.table AS table_name,
    t.comment AS table_comment,
    c.name AS column_name,
    c.type AS data_type,
    c.comment AS column_comment
FROM system.columns AS c
JOIN system.tables AS t
    ON c.database = t.database
   AND c.table = t.name
WHERE c.database NOT IN ('system', 'INFORMATION_SCHEMA', 'information_schema', 'pg_catalog')
ORDER BY c.database, c.table, c.position;

If a table you expect to see is missing, the connecting user has no SELECT privilege on it — go back to step 2 and add the appropriate GRANT SELECT.
If the result is huge and full of unfamiliar objects, you may be connecting with a highly privileged account. Consider switching to a dedicated read-only user with narrower grants.

d. Spot-check a sample table

-- Replace with one of the database/table pairs you intend to expose.
SELECT *
FROM analytics.orders
LIMIT 1;

A successful read confirms that SELECT on the target object is in place. If this fails with ACCESS_DENIED, grant SELECT on the target database/table to your user.

Before you connect

ClickHouse Cloud

For ClickHouse Cloud, make sure the Wren AI outbound IP is added to your service's IP access list. ClickHouse Cloud connection details commonly use HTTPS/TLS, so use the Cloud-provided host and port (often 8443) and enable SSL in the connection form when required.

User management may be handled in the ClickHouse Cloud console or through SQL, depending on your organization settings. Use the same least-privilege model: create or select a dedicated user, then grant SELECT only on the databases Wren AI should read.

Supported ClickHouse metadata

Wren AI requires ClickHouse metadata tables system.tables and system.columns for table discovery. This is available in modern ClickHouse releases, including the tested versions listed below. If your deployment does not expose these system tables or required metadata columns, the Select Tables step may fail or return an empty list.

Connect

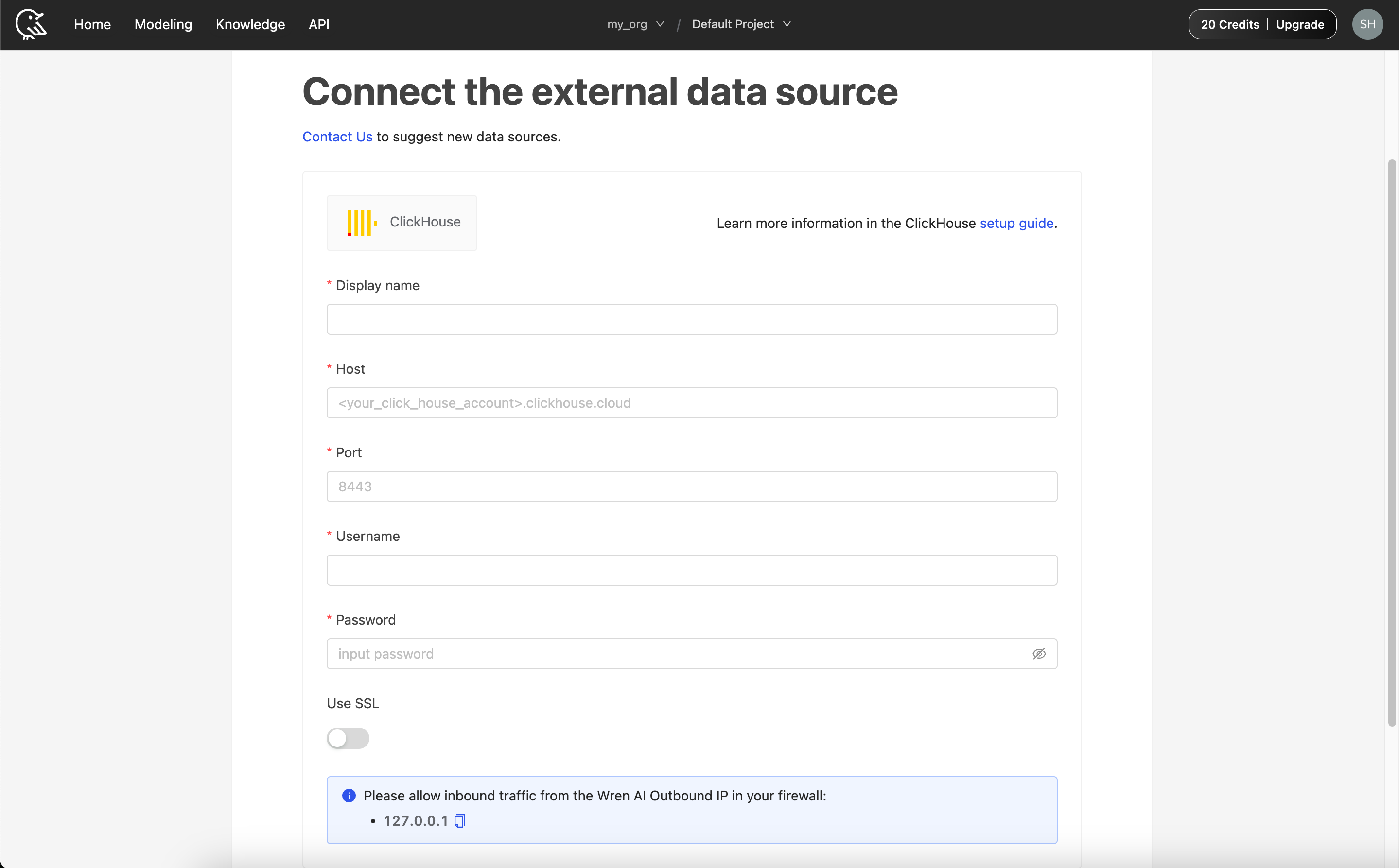

Fill in the connection settings: clickhouse_1

Display name

The display name for the database in the Wren AI interface.

Host

IP address or domain name of your ClickHouse database.

Port

Your ClickHouse database port.

Username

The database username for the account that you want to use to connect to your ClickHouse database.

Password

The password for the username that you use to connect to the database.

Click Next to start connection and go to the next step.

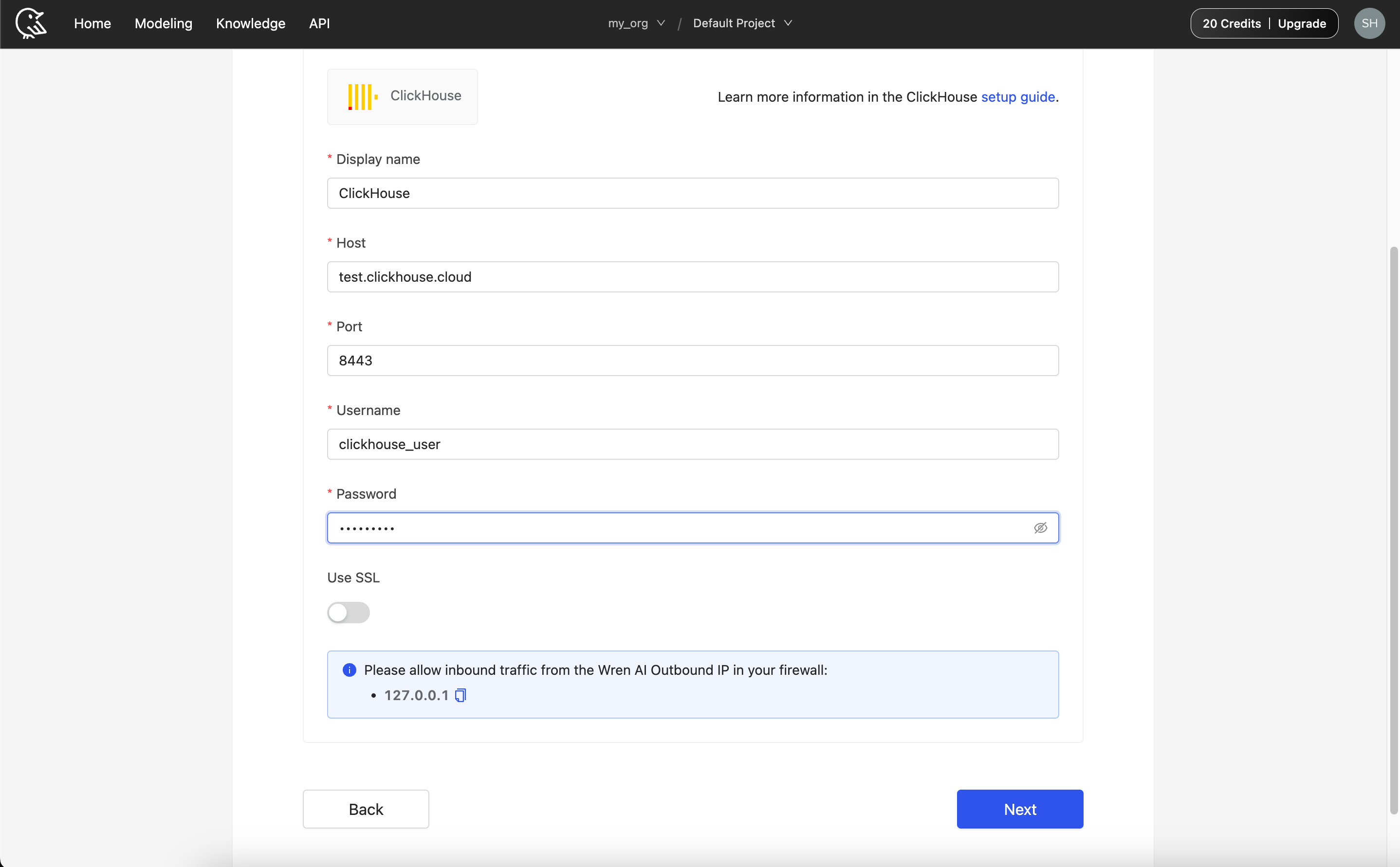

clickhouse_2

Cross Databases

Wren AI supports cross-database table selection in ClickHouse. You do not need to specify a database name. In the Select Tables step, tables from all available databases will be listed for you to choose from.

Select Tables

All tables of your connected ClickHouse dataset will be listed in this step. Select which tables you want to use in Wren AI. Each selected table will be created as a data model. See the Modeling documentations to learn more about what is data models. select_table

If a table you expect to see is missing, or unfamiliar objects appear, see Required Permissions → Verify the account to preview the discovery result and adjust grants before retrying.

Define relationships

Define the relationships among selected tables in this step. ClickHouse does not provide foreign-key metadata in the same way as traditional relational databases, so Wren AI does not automatically list suggested relationships for ClickHouse connections. You can add relationships manually by clicking the Add relationships button on the table blocks. define_relationship_1

Define following properties in a relationship:

From: Select the left side table and column of this relationship.
To: Select the right side table and column of this relationship.
Relationship Type: Select the type of relationship.

Find more information about relationship in Modeling - Working with Relationships

You can also skip this step and finish connection.

Tested ClickHouse versions

Wren AI is tested against the following ClickHouse environments:

ClickHouse Cloud
ClickHouse 25.8.24.21
ClickHouse 24.10.1.2812

Other recent ClickHouse versions are expected to work via the same connection mechanism, but are not part of the tested version list. If you hit a version-specific issue, please contact us.
