Snowflake

To add a Snowflake connection, click on the Snowflake option in Connect a data source section. connect

Connect​

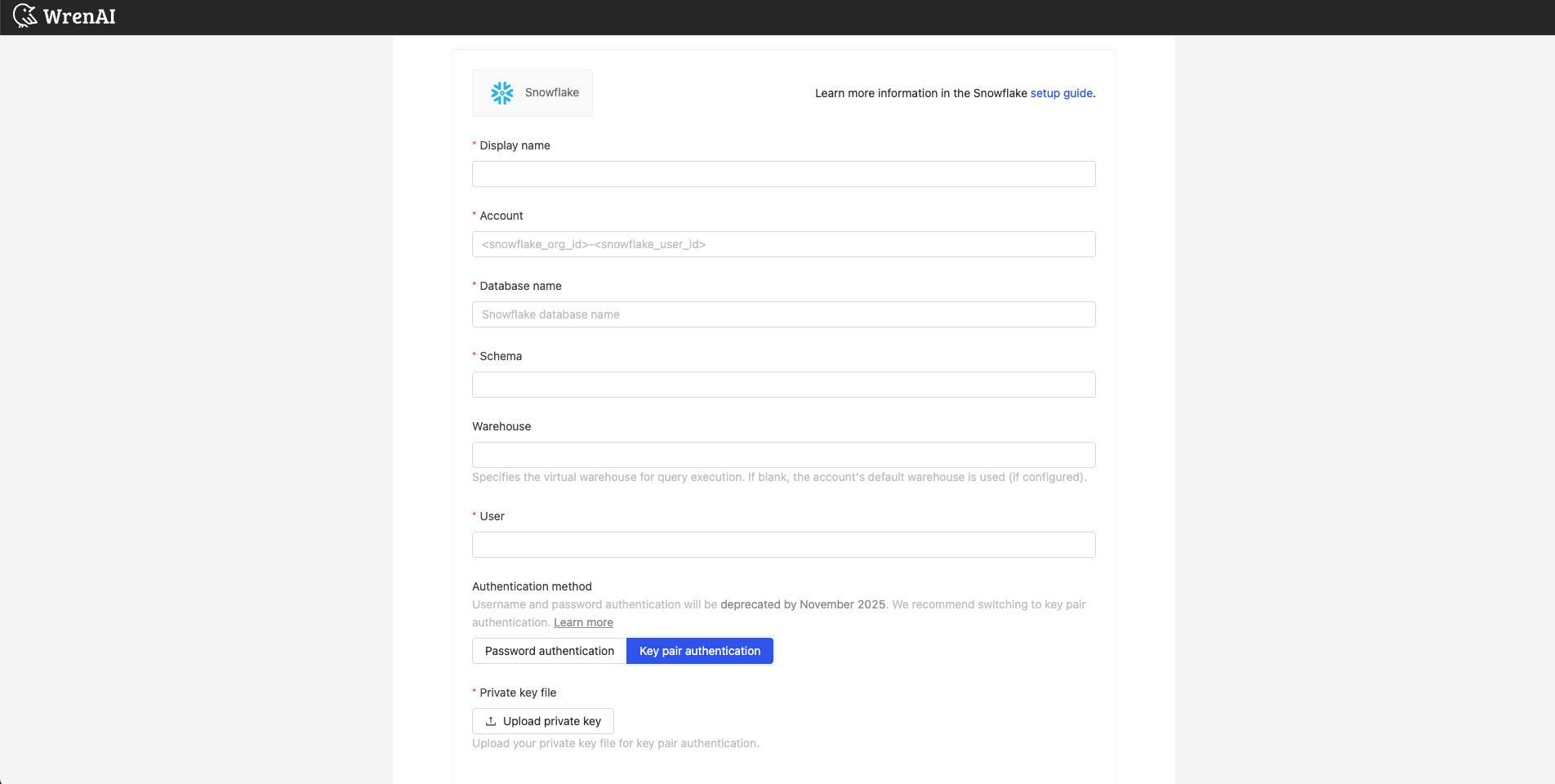

Fill in the connection settings: snowflake

Display name​

The display name for the database in the Wren AI interface.

Account​

The account name for the account that you want to use to connect to your Snowflake database. The format is organization_name-account_name.

How to find the account name

You could find the account name from the Snowflake dashboard. account

Database name​

The name of the database you want to connect to.

Schema​

The schema name for the schema that you want to use to connect to your Snowflake database.

Warehouse​

Specifies the virtual warehouse for query execution. If blank, the account's default warehouse is used (if configured).

User​

The database username for the account that you want to use to connect to your Snowflake database.

Authentication method​

Notice

Username and password authentication will be deprecated by November 2025. We recommend switching to key pair authentication. Learn more

Choose between two authentication methods:

Password authentication​

  • Username: The database username for the account that you want to use to connect to your Snowflake database.
  • Password: The password for the username that you use to connect to the database.

Key pair authentication​

  • Username: The database username for the account that you want to use to connect to your Snowflake database.
  • Private key: Upload your unencrypted RSA private key file.
Key Pair Authentication Setup

To configure key pair authentication, follow the Snowflake documentation to generate and configure your key pair. Make sure to use an unencrypted private key file for the connection.

Click Next to start connection and go to the next step.

Troubleshooting​

Encrypted Private Key Error​

If you encounter the following error:

Data connection error
251008: Failed to load private key: Password was not given but private key is encrypted Please provide a valid unencrypted rsa private key in DER format as bytes object

This means your private key is encrypted and needs to be decrypted. Follow these steps to create an unencrypted version:

  1. Run the decryption command (it will prompt for your password):

    openssl pkcs8 -inform PEM -in rsa_key.p8 -out rsa_key_unencrypted.p8

  2. When prompted with Enter PEM pass phrase:, enter the password you set when generating the encrypted key.

  3. The output file will contain the unencrypted version:

    -----BEGIN PRIVATE KEY-----
    MIIEvQIBADANBgkqhkiG9w0BAQEFAASCBKcwggSjAgEAAoIBAQC...
    -----END PRIVATE KEY-----

  4. Use this unencrypted private key file in the connection form.

Select Tables​

All tables of your connected Snowflake dataset will be listed in this step. Select which tables you want to use in Wren AI. Each selected table will be created as a data model. See the Modeling documentations to learn more about what is data models. select_table

Define relationships​

Define the relationships among selected tables in this step. If you have defined primary keys and foreign keys in your Snowflake dataset, we will list suggested relationships based on the information. If not, you can also add relationships by clicking the Add relationships button on the table blocks. relationship

Define following properties in a relationship:

  • From: Select the left side table and column of this relationship.
  • To: Select the right side table and column of this relationship.
  • Relationship Type: Select the type of relationship. add_relationship

Find more information about relationship in Modeling - Working with Relationships

You can also skip this step and finish connection.
